Preliminary Tests of Currency Strength Indicator

Since my last post on the currency strength indicator I have been conducting a series of basic randomisation tests to see if the indicator has better than random predictive ability. The first test was a random permutation test, as described in Aronson's Evidence Based Technical Analysis book, the code for which I have previously posted on my Data Snooping Tests Github page. These results were all disappointing in that the null hypothesis of no predictive ability cannot be rejected. However, looking at a typical chart ( repeated from the previous post but colour coded for signals )

it can be seen that there are a lot of green ( no signal ) bars which, during the randomisation test, can be selected and give equal or greater returns than the signal bars ( blue for longs, red for shorts ). The relative sparsity of the signal bars compared to non-signal bars gives the permutation test, in this instance, low power to detect significance, although I am not able to show that this is actually true in this case.

In the light of the above I decided to conduct a different test, the .m code for which is shown below.

clear all ;
load all_strengths_quad_smooth_21 ;

all_random_entry_distribution_results = zeros( 21 , 3 ) ;

tic();

for ii = 1 : 21

clear -x ii all_strengths_quad_smooth_21 all_random_entry_distribution_results ;

  if ii == 1
  load audcad_daily_bin_bars ;
  mid_price = ( audcad_daily_bars( : , 3 ) .+ audcad_daily_bars( : , 4 ) ) ./ 2 ; mid_price_rets = [ 0 ; diff( mid_price ) ] ;
  base_ix = 6 ; term_ix = 7 ;
  end

  if ii == 2
  load audchf_daily_bin_bars ;
  mid_price = ( audchf_daily_bars( : , 3 ) .+ audchf_daily_bars( : , 4 ) ) ./ 2 ; mid_price_rets = [ 0 ; diff( mid_price ) ] ;
  base_ix = 6 ; term_ix = 4 ;
  end

  if ii == 3
  load audjpy_daily_bin_bars ;
  mid_price = ( audjpy_daily_bars( : , 3 ) .+ audjpy_daily_bars( : , 4 ) ) ./ 2 ; mid_price_rets = [ 0 ; diff( mid_price ) ] ;
  base_ix = 6 ; term_ix = 5 ;
  end

  if ii == 4
  load audusd_daily_bin_bars ;
  mid_price = ( audusd_daily_bars( : , 3 ) .+ audusd_daily_bars( : , 4 ) ) ./ 2 ; mid_price_rets = [ 0 ; diff( mid_price ) ] ;
  base_ix = 6 ; term_ix = 1 ;
  end

  if ii == 5
  load cadchf_daily_bin_bars ;
  mid_price = ( cadchf_daily_bars( : , 3 ) .+ cadchf_daily_bars( : , 4 ) ) ./ 2 ; mid_price_rets = [ 0 ; diff( mid_price ) ] ;
  base_ix = 7 ; term_ix = 4 ;
  end

  if ii == 6
  load cadjpy_daily_bin_bars ;
  mid_price = ( cadjpy_daily_bars( : , 3 ) .+ cadjpy_daily_bars( : , 4 ) ) ./ 2 ; mid_price_rets = [ 0 ; diff( mid_price ) ] ;
  base_ix = 7 ; term_ix = 5 ;
  end

  if ii == 7
  load chfjpy_daily_bin_bars ;
  mid_price = ( chfjpy_daily_bars( : , 3 ) .+ chfjpy_daily_bars( : , 4 ) ) ./ 2 ; mid_price_rets = [ 0 ; diff( mid_price ) ] ;
  base_ix = 4 ; term_ix = 5 ;
  end

  if ii == 8
  load euraud_daily_bin_bars ;
  mid_price = ( euraud_daily_bars( : , 3 ) .+ euraud_daily_bars( : , 4 ) ) ./ 2 ; mid_price_rets = [ 0 ; diff( mid_price ) ] ;
  base_ix = 2 ; term_ix = 6 ;
  end

  if ii == 9
  load eurcad_daily_bin_bars ;
  mid_price = ( eurcad_daily_bars( : , 3 ) .+ eurcad_daily_bars( : , 4 ) ) ./ 2 ; mid_price_rets = [ 0 ; diff( mid_price ) ] ;
  base_ix = 2 ; term_ix = 7 ;
  end

  if ii == 10
  load eurchf_daily_bin_bars ;
  mid_price = ( eurchf_daily_bars( : , 3 ) .+ eurchf_daily_bars( : , 4 ) ) ./ 2 ; mid_price_rets = [ 0 ; diff( mid_price ) ] ;
  base_ix = 2 ; term_ix = 4 ;
  end

  if ii == 11
  load eurgbp_daily_bin_bars ;
  mid_price = ( eurgbp_daily_bars( : , 3 ) .+ eurgbp_daily_bars( : , 4 ) ) ./ 2 ; mid_price_rets = [ 0 ; diff( mid_price ) ] ;
  base_ix = 2 ; term_ix = 3 ;
  end

  if ii == 12
  load eurjpy_daily_bin_bars ;
  mid_price = ( eurjpy_daily_bars( : , 3 ) .+ eurjpy_daily_bars( : , 4 ) ) ./ 2 ; mid_price_rets = [ 0 ; diff( mid_price ) ] ;
  base_ix = 2 ; term_ix = 5 ;
  end

  if ii == 13
  load eurusd_daily_bin_bars ;
  mid_price = ( eurusd_daily_bars( : , 3 ) .+ eurusd_daily_bars( : , 4 ) ) ./ 2 ; mid_price_rets = [ 0 ; diff( mid_price ) ] ;
  base_ix = 2 ; term_ix = 1 ;
  end

  if ii == 14
  load gbpaud_daily_bin_bars ;
  mid_price = ( gbpaud_daily_bars( : , 3 ) .+ gbpaud_daily_bars( : , 4 ) ) ./ 2 ; mid_price_rets = [ 0 ; diff( mid_price ) ] ;
  base_ix = 3 ; term_ix = 6 ;
  end

  if ii == 15
  load gbpcad_daily_bin_bars ;
  mid_price = ( gbpcad_daily_bars( : , 3 ) .+ gbpcad_daily_bars( : , 4 ) ) ./ 2 ; mid_price_rets = [ 0 ; diff( mid_price ) ] ;
  base_ix = 3 ; term_ix = 7 ;
  end

  if ii == 16
  load gbpchf_daily_bin_bars ;
  mid_price = ( gbpchf_daily_bars( : , 3 ) .+ gbpchf_daily_bars( : , 4 ) ) ./ 2 ; mid_price_rets = [ 0 ; diff( mid_price ) ] ;
  base_ix = 3 ; term_ix = 4 ;
  end

  if ii == 17
  load gbpjpy_daily_bin_bars ;
  mid_price = ( gbpjpy_daily_bars( : , 3 ) .+ gbpjpy_daily_bars( : , 4 ) ) ./ 2 ; mid_price_rets = [ 0 ; diff( mid_price ) ] ;
  base_ix = 3 ; term_ix = 5 ;
  end

  if ii == 18
  load gbpusd_daily_bin_bars ;
  mid_price = ( gbpusd_daily_bars( : , 3 ) .+ gbpusd_daily_bars( : , 4 ) ) ./ 2 ; mid_price_rets = [ 0 ; diff( mid_price ) ] ;
  base_ix = 3 ; term_ix = 1 ;
  end

  if ii == 19
  load usdcad_daily_bin_bars ;
  mid_price = ( usdcad_daily_bars( : , 3 ) .+ usdcad_daily_bars( : , 4 ) ) ./ 2 ; mid_price_rets = [ 0 ; diff( mid_price ) ] ;
  base_ix = 1 ; term_ix = 7 ;
  end

  if ii == 20
  load usdchf_daily_bin_bars ;
  mid_price = ( usdchf_daily_bars( : , 3 ) .+ usdchf_daily_bars( : , 4 ) ) ./ 2 ; mid_price_rets = [ 0 ; diff( mid_price ) ] ;
  base_ix = 1 ; term_ix = 4 ;
  end

  if ii == 21
  load usdjpy_daily_bin_bars ;
  mid_price = ( usdjpy_daily_bars( : , 3 ) .+ usdjpy_daily_bars( : , 4 ) ) ./ 2 ; mid_price_rets = [ 0 ; diff( mid_price ) ] ;
  base_ix = 1 ; term_ix = 5 ;
  end

  % the returns vectors suitably alligned with position vector
  mid_price_rets = shift( mid_price_rets , -1 ) ;
  sma2 = sma( mid_price_rets , 2 ) ; sma2_rets = shift( sma2 , -2 ) ; sma3 = sma( mid_price_rets , 3 ) ; sma3_rets = shift( sma3 , -3 ) ;
  all_rets = [ mid_price_rets , sma2_rets , sma3_rets ] ;

  % delete burn in and 2016 data ( 2016 reserved for out of sample testing )
  all_rets( 7547 : end , : ) = [] ; all_rets( 1 : 50 , : ) = [] ;

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% simple divergence strategy - be long the uptrending and short the downtrending currency. Uptrends and downtrends determined by crossovers
% of the strengths and their respective smooths
  smooth_base = smooth_2_5( all_strengths_quad_smooth_21(:,base_ix) ) ; smooth_term = smooth_2_5( all_strengths_quad_smooth_21(:,term_ix) ) ;
  test_matrix = ( all_strengths_quad_smooth_21(:,base_ix) > smooth_base ) .* ( all_strengths_quad_smooth_21(:,term_ix) < smooth_term) ; % +1 for longs
  short_vec = ( all_strengths_quad_smooth_21(:,base_ix) < smooth_base ) .* ( all_strengths_quad_smooth_21(:,term_ix) > smooth_term) ; short_vec = find( short_vec ) ;
  test_matrix( short_vec ) = -1 ; % -1 for shorts
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

  % delete burn in and 2016 data
  test_matrix( 7547 : end , : ) = [] ; test_matrix( 1 : 50 , : ) = [] ;
  [ ix , jx , test_matrix_values ] = find( test_matrix ) ;
  no_of_signals = length( test_matrix_values ) ;

  % the actual returns performance
  real_results = mean( repmat( test_matrix_values , 1 , size( all_rets , 2 ) ) .* all_rets( ix , : ) ) ;

  % set up for randomisation test
  iters = 5000 ;
  imax = size( test_matrix , 1 ) ;
  rand_results_distribution_matrix = zeros( iters , size( real_results , 2 ) ) ;

    for jj = 1 : iters
      rand_idx = randi( imax , no_of_signals , 1 ) ;
      rand_results_distribution_matrix( jj , : ) = mean( test_matrix_values .* all_rets( rand_idx , : ) ) ;
    endfor

  all_random_entry_distribution_results( ii , : ) = ( real_results .- mean( rand_results_distribution_matrix ) ) ./ ...
                                                    ( 2 .* std( rand_results_distribution_matrix ) ) ;

endfor % end of ii loop

toc()

save -ascii all_random_entry_distribution_results all_random_entry_distribution_results ;

plot(all_random_entry_distribution_results(:,1),'k','linewidth',2,all_random_entry_distribution_results(:,2),'b','linewidth',2,...
all_random_entry_distribution_results(:,3),'r','linewidth',2) ; legend('1 day','2 day','3 day');

What the code basically does is construct null hypothesis distributions of 1, 2 and 3 day returns of n random entries, where n is the same number of signal bars -1 or +1 as the currency strength indicator signal. The signal returns are then plotted as a line chart of the distance between random return means and signal return means normalised by 2x the random return standard deviations. In this way values >1 approximately correspond to p values < 0.05. Two typical charts are shown below

The first chart shows the results of the unsmoothed currency strength indicator and the second the smoothed version. From this I surmise that the delay introduced by the smoothing is/will be detrimental to performance and so for the nearest future I shall be working on improving the smoothing algorithm used in the indicator calculations.

Currency Strength Indicator

Over the last few weeks I have been looking into creating a currency strength indicator as input to a Nonlinear autoregressive exogenous model. This has involved a fair bit of online research and I have to say that compared to other technical analysis indicators there seems to be a paucity of pages devoted to the methodology of creating such an indicator. Apart from the above linked Wikipedia page I was only really able to find some discussion threads on some forex forums, mostly devoted to the Metatrader platform, and a few of the more enlightening threads are here, here and here. Another website I found, although not exactly what I was looking for, is marketsmadeclear.com and in particular their Currency Strength Matrix.

In the end I decided to create my own relative currency strength indicator, based on the RSI, by making the length of the indicator adaptive to the measured dominant cycle. The optimal theoretical length for the RSI is half the cycle period, and the price series are smoothed in a [ 1 2 2 1 ] FIR filter prior to the RSI calculations. I used the code in my earlier post to calculate the dominant cycle period, the reason being that since I wrote that post I have watched/listened to a podcast in which John Ehlers recommended using this calculation method for dominant cycle measurement.

The screenshots below are of the currency strength indicator applied to approx. 200 daily bars of the EURUSD forex pair; first the price chart,

next, the indicator,

and finally an oscillator derived from the two separate currency strength lines.

I think the utility of this indicator is quite obvious from these simple charts. Crossovers of the strength lines ( or equivalently, zero line crossings of the oscillator ) clearly indicate major directional changes, and additionally changes in the slope of the oscillator provide an early warning of impending price direction changes.

I will now start to test this indicator and write about these tests and results in due course.

Loading and Manipulating Historical Data From .csv Files

In my last post I said I was going to look at data wrangling my data, and this post outlines what I have done since then.

My problem was that I have numerous csv files containing historical data with different date formats and frequency, e.g. tick level and hourly and daily OHLC, and in the past I have always struggled with this. However, I have finally found a solution using the R quantmod package, which makes it easy to change data into a lower frequency. It took me some time to finally get what I wanted but the code box below shows the relevant R code to convert hourly OHLC, contained in one .csv file, to daily OHLC which is then written to a new .csv file.

library("quantmod", lib.loc="~/R/x86_64-pc-linux-gnu-library/3.3")
price_data = read.csv( "path/to/file.csv" , header = FALSE )
price_data = xts( price_data[,2:6] , order.by = as.Date.POSIXlt( strptime( price_data[,1] , format = "%d/%m/%y %H:%M" , tz = "" ) ) )
price_data_daily = to.daily( price_data , drop.time = TRUE )
write.zoo( price_data_daily , file = "path/to/new/file.csv" , sep = "," , row.names = FALSE , col.names = FALSE )

To finally achieve such a small snippet of working code I can't believe how much time I had to spend reading documentation and looking online.

This next code box shows Octave code to load the above written .csv file into Octave

fid = fopen( 'path/to/file' , 'rt' ) ;
data = textscan( fid , '%s %f %f %f %f' , 'Delimiter' , ',' , 'CollectOutput', 1 ) ;
fclose( fid ) ;
eurusd = [ datenum( data{1} , 'yyyy-mm-dd' ) data{2} ] ;
clear data fid

Hopefully, in both cases, manipulating the format strings "%d/%m/%y %H:%M" and 'yyyy-mm-dd' in these two respective code snippets will save you the hours I spent.

Useful links that helped me are:

• https://stackoverflow.com/questions/1641519/reading-date-and-time-from-csv-file-in-matlab
• http://www.quantmod.com/examples/data/#aggregate

Possible Addition of NARX Network to Conditional Restricted Boltzmann Machine

It has been over three months since my last post, due to working away from home for some of the summer, a summer holiday and moving home. However, during this time I have continued with my online reading and some new thinking about my conditional restricted boltzmann machine based trading system has developed, namely the use of a nonlinear autoregressive exogenous model in the bottom layer gaussian units of the CRBM. Some links to reading on the same are shown below.

• https://www.mathworks.com/help/nnet/ug/design-time-series-narx-feedback-neural-networks.html
• http://deeplearning.cs.cmu.edu/pdfs/Narx.pdf
• http://www.wseas.us/e-library/transactions/research/2008/27-464.pdf
• https://rucore.libraries.rutgers.edu/rutgers-lib/24889/
• https://arxiv.org/abs/1607.02093
• https://hal.archives-ouvertes.fr/hal-00501643/document
• http://www.theijes.com/papers/v3-i11/Version-1/C0311019026.pdf
• http://www.sciencedirect.com/science/article/pii/S0925231208003081

The exogenous time series I am thinking of using, at least for the major forex pairs and perhaps precious metals, oil and US treasuries, is a currency strength indicator based on the US dollar. In order to create the currency strength indicator I will have to delve into some data wrangling with the historical forex data I have, and this will be the subject of my next post.

Giving Up on Recursive Sine Formula for Period Calculation

I have spent the last few weeks trying to get my recursive sine wave formula for period calculations to work, but try as I might I can only get it to do so under ideal theoretical conditions. Once any significant noise, trend or combination thereof is introduced the calculations explode and give meaningless results. In light of this, I am no longer going to continue this work.

Apart from the above work I have also been doing my usual online research and have come across John Ehler's autocorrelation periodogram for period measurement, and below is my Octave C++ .oct implementation of it.

DEFUN_DLD ( autocorrelation_periodogram, args, nargout,
"-*- texinfo -*-\n\
@deftypefn {Function File} {} autocorrelation_periodogram (@var{input_vector})\n\
This function takes an input vector ( price ) and outputs the dominant cycle period,\n\
calculated from the autocorrelation periodogram spectrum.\n\
@end deftypefn" )

{
octave_value_list retval_list ;
int nargin = args.length () ;

// check the input arguments
if ( nargin != 1 ) // there must be a price vector only
   {
   error ("Invalid arguments. Input is a price vector only.") ;
   return retval_list ;
   }

if ( args(0).length () < 4 )
   {
   error ("Invalid argument length. Input is a price vector of length >= 4.") ;
   return retval_list ;
   }

if ( error_state )
   {
   error ("Invalid argument. Input is a price vector of length >= 4.") ;
   return retval_list ;
   }
// end of input checking

ColumnVector input = args(0).column_vector_value () ;
ColumnVector hp = args(0).column_vector_value () ; hp.fill( 0.0 ) ;
ColumnVector smooth = args(0).column_vector_value () ; smooth.fill( 0.0 ) ;
ColumnVector corr ( 49 ) ; corr.fill( 0.0 ) ;
ColumnVector cosine_part ( 49 ) ; cosine_part.fill( 0.0 ) ;
ColumnVector sine_part ( 49 ) ; sine_part.fill( 0.0 ) ;
ColumnVector sq_sum ( 49 ) ; sq_sum.fill( 0.0 ) ;
ColumnVector R1 ( 49 ) ; R1.fill( 0.0 ) ;
ColumnVector R2 ( 49 ) ; R2.fill( 0.0 ) ;
ColumnVector pwr ( 49 ) ; pwr.fill( 0.0 ) ;
ColumnVector dominant_cycle = args(0).column_vector_value () ; dominant_cycle.fill( 0.0 ) ;

double avglength = 3.0 ;
double M ;
double X ; double Y ;
double Sx ; double Sy ; double Sxx ; double Syy ; double Sxy ;
double denom ;
double max_pwr = 0.0 ;
double Spx ; double Sp ;

// variables for highpass filter, hard coded for a high cutoff period of 48 bars and low cutoff of 10 bars
double high_cutoff = 48.0 ; double low_cutoff = 10.0 ;
double alpha_1 = ( cos( 0.707 * 2.0 * PI / high_cutoff ) + sin( 0.707 * 2.0 * PI / high_cutoff ) - 1.0 ) / cos( 0.707 * 2.0 * PI / high_cutoff ) ;
double beta_1 = ( 1.0 - alpha_1 / 2.0 ) * ( 1.0 - alpha_1 / 2.0 ) ;
double beta_2 = 2.0 * ( 1.0 - alpha_1 ) ;
double beta_3 = ( 1.0 - alpha_1 ) * ( 1.0 - alpha_1 ) ;

// variables for super smoother
double a1 = exp( -1.414 * PI / low_cutoff ) ;
double b1 = 2.0 * a1 * cos( 1.414 * PI / low_cutoff ) ;
double c2 = b1 ;
double c3 = -a1 * a1 ;
double c1 = 1.0 - c2 - c3 ;

// calculate the automatic gain control factor, K
double K = 0.0 ;
double accSlope = -1.5 ; //acceptableSlope = 1.5 dB
double halfLC = low_cutoff / 2.0 ;
double halfHC = high_cutoff / 2.0 ;
double ratio = pow( 10 , accSlope / 20.0 ) ;

 if( halfHC - halfLC > 0.0 )
    {
  K = pow( ratio , 1.0 / ( halfHC - halfLC ) ) ;
    }

// loop to initialise hp and smooth
for ( octave_idx_type ii ( 2 ) ; ii < 49 ; ii++ ) // main loop
    {
    // highpass filter components whose periods are < 48 bars
    hp(ii) = beta_1 * ( input(ii) - 2.0 * input(ii-1) + input(ii-2) ) + beta_2 * hp(ii-1) - beta_3 * hp(ii-2) ;

    // smooth with a super smoother filter
    smooth(ii) = c1 * ( hp(ii) + hp(ii-1) ) / 2.0 + c2 * smooth(ii-1) + c3 * smooth(ii-2) ;
    } // end of initial loop

for ( octave_idx_type ii ( 49 ) ; ii < args(0).length () ; ii++ ) // main loop
    {
    // highpass filter components whose periods are < 48 bars
    hp(ii) = beta_1 * ( input(ii) - 2.0 * input(ii-1) + input(ii-2) ) + beta_2 * hp(ii-1) - beta_3 * hp(ii-2) ;

    // smooth with a super smoother filter
    smooth(ii) = c1 * ( hp(ii) + hp(ii-1) ) / 2.0 + c2 * smooth(ii-1) + c3 * smooth(ii-2) ;

      // Pearson correlation for each value of lag
      for ( octave_idx_type lag (0) ; lag <= high_cutoff ; lag++ )
          {
          // set the averaging length as M
          M = avglength ;
          if ( avglength == 0)
             {
              M = double( lag ) ;
             }

          Sx = 0.0 ; Sy = 0.0 ; Sxx = 0.0 ; Syy = 0.0 ; Sxy = 0.0 ;

            for ( octave_idx_type count (0) ; count < M - 1 ; count++ )
                {
                 X = smooth(ii-count) ; Y = smooth(ii-(lag+count)) ;
                 Sx += X ;
                 Sy += Y ;
                 Sxx += X * X ;
                 Sxy += X * Y ;
                 Syy += Y * Y ;
                }

            denom = ( M * Sxx - Sx * Sx ) * ( M * Syy - Sy * Sy ) ;
            if ( denom > 0.0 )
               {
                corr(lag) = ( M * Sxy - Sx * Sy ) / sqrt( denom ) ;
               }

          } // end of Pearson correlation loop
/*
    The DFT is accomplished by correlating the autocorrelation at each value of lag with the cosine and sine of each period of interest.
    The sum of the squares of each of these values represents the relative power at each period.
*/
      for ( octave_idx_type period (low_cutoff) ; period <= high_cutoff ; period++ )
          {
           cosine_part( period ) = 0.0 ; sine_part( period ) = 0.0 ;

            for ( octave_idx_type N (3) ; N <= high_cutoff ; N++ )
                {
                 cosine_part( period ) += corr( N ) * cos( 2.0 * PI * double( N ) / double( period ) ) ;
                 sine_part( period ) += corr( N ) * sin( 2.0 * PI * double( N ) / double( period ) ) ;
                } // end of N loop

            sq_sum( period ) = cosine_part( period ) * cosine_part( period ) + sine_part( period ) * sine_part( period ) ;

          } // end of first period loop

      // EMA is used to smooth the power measurement at each period
      for ( octave_idx_type period (low_cutoff) ; period <= high_cutoff ; period++ )
          {
           R2( period ) = R1( period ) ;
           R1( period ) = 0.2 * sq_sum( period ) * sq_sum( period ) + 0.8 * R2( period ) ;
          } // end of second period loop

    // Find maximum power level for normalisation
    max_pwr = 0.0 ;

      for ( octave_idx_type period (low_cutoff) ; period <= high_cutoff ; period++ )
          {
           if ( R1( period ) > max_pwr )
              {
                max_pwr = K * R1( period ) ;
              }
          } // end of third period loop

    // normalisation of power
      for ( octave_idx_type period (low_cutoff) ; period <= high_cutoff ; period++ )
          {
           pwr( period ) = R1( period ) / max_pwr ;
          } // end of fourth period loop

    // compute the dominant cycle using the centre of gravity of the spectrum
    Spx = 0.0 ; Sp = 0.0 ;

      for ( octave_idx_type period (low_cutoff) ; period <= high_cutoff ; period++ )
          {
           if ( pwr( period ) >= 0.5 )
              {
               Spx += double( period ) * pwr( period ) ;
               Sp += pwr( period ) ;
              }
          } // end of fifth period loop

    if ( Sp != 0.0 )
       {
        dominant_cycle(ii) = Spx / Sp ;
       }

    } // end of main loop

retval_list( 0 ) = dominant_cycle ;

return retval_list ;

} // end of function

When applied directly to a theoretical but noisy sine wave series with a trend I find that this autocorrelation method performs better than my current period measurement algo, but on detrended data it is not as good. Since it is trivial to detrend price data, for now I am going to stick with my current method.

Recursive Sine Wave Formula for Period Calculation

Since my last post I have successfully managed to incorporate the deepmat toolbox into my code, so now my RBM pre-training uses Parallel tempering and adaptive learning rates, which is all well and good. The only draw back at the moment is the training time - it takes approximately 3 to 4 minutes per bar to train on a minimal set of 2 features because the toolbox is written in Octave code and uses for loops instead of using vectorisation. Obviously this is something that I would like to optimise, but for the nearest future I now want to concentrate on feature engineering and create a useful set of features for my CRBM.

In the past I have blogged about frequency/period measurement ( e.g. here and here ) and in this post I would like to talk about a possible new way to calculate the dominant cycle period in the data. In a Stackoverflow forum post some time ago I was alerted to a recursive sinewave generator, with code, that shows how to forward generate a sine wave using just the last few values of a sine wave. It struck me that the code can be used, given the last three values of a sine wave, to calculate the period of the sine wave using simple linear regression, and in the code box below I give some Octave code which shows the basic idea.

clear all

% sine wave periods
period = input( 'Enter period: ' )
period2 = input( 'Enter period2: ' )

true_periods = [ ones( 6*period , 1 ) .* period ; ones( 3*period2 , 1 ) .* period2 ; ones( 3*period , 1 ) .* period ] ;

% create sine wave and add some noise
price = awgn( 1 .* ( 2 .+ [ sinewave( 6*period , period )' ; sinewave( 3*period2 , period2 )' ; sinewave( 3*period , period )' ] ) , 100 ) ;

% extract the signal
hp = highpass_filter_basic( price ) ;

% smooth the signal
smooth = smooth_2_5( hp ) ;

Y = smooth .+ shift( smooth , 2 ) ;
X = shift( smooth , 1 ) ;

calculated_periods = zeros( size ( price ) ) ;

% do the linear regression
for ii = 50 : size( price , 1 )
calculated_periods(ii) = ( ( X( ii-4:ii , : )' * X( ii-4:ii , : ) ) \ X( ii-4:ii , : )' ) * Y( ii-4:ii , : ) ;
end

% get the periods from regression calculations
calculated_periods = real( sqrt( ( 8 .- 4 .* calculated_periods ) ./ ( calculated_periods .+ 2 ) ) ) ;
calculated_periods = 360 ./ ( ( calculated_periods .* 180 ) ./ pi ) ;
calculated_periods = ema( calculated_periods , 3 ) ;
calculated_periods = round( calculated_periods ) ;

figure(1) ; plot( price , 'b' , "linewidth" , 2 , hp , 'r' , "linewidth" , 2 , smooth , 'g' , "linewidth" , 2 ) ; legend( 'Price' , 'Highpass' , 'Highpass smooth' ) ;
figure(2) ; plot( true_periods , 'b' , "linewidth" , 2 , calculated_periods , 'r' , "linewidth", 2 ) ; legend( 'True Periods' , 'Calculated Periods' ) ;

The code creates a sine wave with two periods ( user defined ), does the calculations and then plots the  sine wave and the periods in figures 1 and 2 respectively. The linear regression part of the code use the most recent five bars for calculation, which could of course also be user defined. On data without added noise typical plots are :-

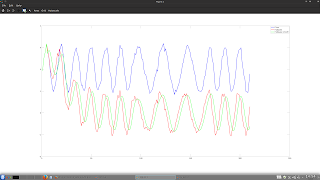

which shows the underlying "price" in blue and the high pass filtered and smoothed versions in red and green and

shows the true and measured periods. Noisy price versions of the above are :-

and

Theoretically it seems to work, but I would like to see if things can be improved. More in my next post.

Parallel Tempering and Adaptive Learning Rates in Restricted Boltzmann Machine Learning

It has been a while since my last post and in the intervening time I have been busy working on the code of my previous few posts.

During the course of this I have noticed that there are some further improvements to be made in terms of robustness etc. inspired by this Master's thesis, Improved Learning Algorithms for Restricted Boltzmann Machines, by KyungHyun Cho. Using the Deepmat Toolbox code available here as a guide, I now intend to further improve my code by incorporating the concepts of Parallel Tempering and adaptive learning rates for both the RBM and CRBM training.

More in due course.

Refactored Denoising Autoencoder Update #2

Below is this second code update.

%  select rolling window length to use - an optimisable parameter via pso?
rolling_window_length = 50 ;
batchsize = 5 ;

%  how-many timesteps do we look back for directed connections - this is what we call the "order" of the model
n1 = 3 ; % first "gaussian" layer order, a best guess just for batchdata creation purposes
n2 = 3 ; % second "binary" layer order, a best guess just for batchdata creation purposes

%  taking into account rolling_window_length, n1, n2 and batchsize, get total lookback length
remainder = rem( ( rolling_window_length + n1 + n2 ) , batchsize ) ;

if ( remainder > 0 ) % number of training examples with lookback and orders n1 and n2 not exactly divisable by batchsize
lookback_length = ( rolling_window_length + n1 + n2 + ( batchsize - remainder ) ) ; % increase the lookback_length
else                 % number of training examples with lookback and orders n1 and n2 exactly divisable by batchsize
lookback_length = ( rolling_window_length + n1 + n2 ) ;
end

%  create batchdataindex using lookback_length to index bars in the features matrix
batchdataindex = ( ( training_point_index - ( lookback_length - 1 ) ) : 1 : training_point_index )' ;
batchdata = features( batchdataindex , : ) ;

%  now that the batchdata has been created, check it for autocorrelation in the features
all_ar_coeff = zeros( size( batchdata , 2 ) , 1 ) ;

  for ii = 1 : size( batchdata , 2 )
  ar_coeffs = arburg( batchdata( : , ii ) , 10 , 'FPE' ) ;
  all_ar_coeff( ii ) = length( ar_coeffs ) - 1 ;
  end

%  set order of gaussian_crbm, n1, to be equal to the average length of any autocorrelation in the data
n1 = round( mean( all_ar_coeff ) ) ;

%  z-normalise the batchdata matrix with the mean and std of columns
data_mean = mean( batchdata , 1 ) ;
data_std = std( batchdata , 1 ) ;
batchdata = ( batchdata .- repmat( data_mean , size( batchdata , 1 ) , 1 ) ) ./ repmat( data_std , size( batchdata , 1 ) , 1 ) ; % batchdata is now z-normalised by data_mean & data_std

%  create the minibatch index matrix for gaussian rbm pre-training of directed weights w
minibatch = ( 1 : 1 : size( batchdata , 1 ) ) ; minibatch( 1 : ( size( batchdata , 1 ) - rolling_window_length ) ) = [] ;
minibatch = minibatch( randperm( size( minibatch , 2 ) ) ) ; minibatch = reshape( minibatch , batchsize , size( minibatch , 2 ) / batchsize ) ;

% PRE-TRAINING FOR THE VISABLE TO HIDDEN AND THE VISIBLE TO VISIBLE WEIGHTS %%%%
% First create a training set and target set for the pre-training of gaussian layer
dAuto_Encode_targets = batchdata ; dAuto_Encode_training_data = [] ;
% dAuto_Encode_targets = batchdata( : , 2 : end ) ; dAuto_Encode_training_data = [] ; % if bias added to raw data

  % loop to create the dAuto_Encode_training_data ( n1 == "order" of the gaussian layer of crbm )
  for ii = 1 : n1
  dAuto_Encode_training_data = [ dAuto_Encode_training_data shift( batchdata , ii ) ] ;
  end

% now delete the first n1 rows due to circular shift induced mismatch of data and targets
dAuto_Encode_targets( 1 : n1 , : ) = [] ; dAuto_Encode_training_data( 1 : n1 , : ) = [] ;

% DO RBM PRE-TRAINING FOR THE BOTTOM UP DIRECTED WEIGHTS W %%%%%%%%%%%%%%%%%%%%%
% use rbm trained initial weights instead of using random initialisation for weights
% Doing this because we are not using regularisation in the autoencoder pre-training
epochs = 10000 ;
hidden_layer_size = 4 * size( dAuto_Encode_targets , 2 ) ;
[ w_weights , w_weights_hid_bias , w_weights_vis_bias ] = cc_gaussian_rbm( dAuto_Encode_targets , minibatch , epochs , hidden_layer_size , 0.05 ) ;
% keep a copy of these original w_weights
w1 = w_weights ;
[ A_weights , A_weights_hid_bias , A_weights_vis_bias ] = cc_gaussian_rbm( dAuto_Encode_training_data , minibatch , epochs , size( dAuto_Encode_targets , 2 ) , 0.05 ) ;
[ B_weights , B_weights_hid_bias , B_weights_vis_bias ] = cc_gaussian_rbm( dAuto_Encode_training_data , minibatch , epochs , hidden_layer_size , 0.05 ) ;

% END OF RBM PRE-TRAINING OF AUTOENCODER WEIGHTS %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

figure(1) ; surf( A_weights ) ; title( 'A Weights after RBM training' ) ;
figure(2) ; surf( B_weights ) ; title( 'B Weights after RBM training' ) ;
figure(3) ; surf( w_weights ) ; title( 'w Weights after RBM training' ) ;
figure(4) ; plot( A_weights_hid_bias , 'b' , B_weights_hid_bias , 'r' , w_weights_vis_bias , 'g' ) ; title( 'Biases after RBM training' ) ; legend( 'A' , 'B' , 'w' ) ;

% DO THE AUTOENCODER TRAINING %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% create weight update matrices
A_weights_update = zeros( size( A_weights ) ) ;
A_weights_hid_bias_update = zeros( size( A_weights_hid_bias ) ) ;
B_weights_update = zeros( size( B_weights ) ) ;
B_weights_hid_bias_update = zeros( size( B_weights_hid_bias ) ) ;
w_weights_update = zeros( size( w_weights ) ) ;
w_weights_vis_bias_update = zeros( size( w_weights_vis_bias ) ) ;

% for adagrad
historical_A = zeros( size( A_weights ) ) ;
historical_A_hid_bias = zeros( size( A_weights_hid_bias ) ) ;
historical_B = zeros( size( B_weights ) ) ;
historical_B_hid_bias = zeros( size( B_weights_hid_bias ) ) ;
historical_w = zeros( size( w_weights ) ) ;
historical_w_vis_bias = zeros( size( w_weights_vis_bias ) ) ;

% set some training parameters
n = size( dAuto_Encode_training_data , 1 ) ; % number of training examples in dAuto_Encode_training_data
input_layer_size = size( dAuto_Encode_training_data , 2 ) ;
fudge_factor = 1e-6 ; % for numerical stability for adagrad
learning_rate = 0.01 ; % will be changed to 0.001 after 50 iters through epoch loop
mom = 0 ;            % will be changed to 0.9 after 50 iters through epoch loop
noise = 0.5 ;
epochs = 1000 ;
cost = zeros( epochs , 1 ) ;
lowest_cost = inf ;

  % Stochastic Gradient Descent training over dAuto_Encode_training_data
  for iter = 1 : epochs

      % change momentum and learning_rate after 50 iters
      if iter == 50
      mom = 0.9 ;
      learning_rate = 0.001 ;
      end

      index = randperm( n ) ; % randomise the order of training examples

      for training_example = 1 : n

      % Select data for this training batch
      tmp_X = dAuto_Encode_training_data( index( training_example ) , : ) ;
      tmp_T = dAuto_Encode_targets( index( training_example ) , : ) ;

      % Randomly black out some of the input training data
      tmp_X( rand( size( tmp_X ) ) < noise ) = 0 ;

      % feedforward tmp_X through B_weights and get sigmoid e.g ret = 1.0 ./ ( 1.0 + exp(-input) )
      tmp_X_through_sigmoid = 1.0 ./ ( 1.0 .+ exp( - ( tmp_X * B_weights .+ B_weights_hid_bias ) ) ) ;

      % Randomly black out some of tmp_X_through_sigmoid for dropout training
      tmp_X_through_sigmoid( rand( size( tmp_X_through_sigmoid ) ) < noise ) = 0 ;

      % feedforward tmp_X through A_weights and add to tmp_X_through_sigmoid * w_weights for linear output layer
      final_output_layer = ( tmp_X * A_weights .+ A_weights_hid_bias ) .+ ( tmp_X_through_sigmoid * w_weights' .+ w_weights_vis_bias ) ;

      % now do backpropagation
      % this is the derivative of weights for the linear final_output_layer
      delta_out = ( tmp_T - final_output_layer ) ;

      % NOTE! gradient of sigmoid function g = sigmoid(z) .* ( 1.0 .- sigmoid(z) )
      sig_grad = tmp_X_through_sigmoid .* ( 1 .- tmp_X_through_sigmoid ) ;

      % backpropagation only through the w_weights that are connected to tmp_X_through_sigmoid
      delta_hidden = ( delta_out * w_weights ) .* sig_grad ;

      % apply deltas from backpropagation with adagrad for the weight updates
      historical_A = historical_A .+ ( tmp_X' * delta_out ).^2 ;
      A_weights_update = mom .* A_weights_update .+ ( learning_rate .* ( tmp_X' * delta_out ) ) ./ ( fudge_factor .+ sqrt( historical_A ) ) ;

      historical_A_hid_bias = historical_A_hid_bias .+ delta_out.^2 ;
      A_weights_hid_bias_update = mom .* A_weights_hid_bias_update .+ ( learning_rate .* delta_out ) ./ ( fudge_factor .+ sqrt( historical_A_hid_bias ) ) ;

      historical_w = historical_w .+ ( delta_out' * tmp_X_through_sigmoid ).^2 ;
      w_weights_update = mom .* w_weights_update .+ ( learning_rate .* ( delta_out' * tmp_X_through_sigmoid ) ) ./ ( fudge_factor .+ sqrt( historical_w ) ) ;

      historical_w_vis_bias = historical_w_vis_bias .+ delta_out.^2 ;
      w_weights_vis_bias_update = mom .* w_weights_vis_bias_update .+ ( learning_rate .* delta_out ) ./ ( fudge_factor .+ sqrt( historical_w_vis_bias ) ) ;

      historical_B = historical_B .+ ( tmp_X' * delta_hidden ).^2 ;
      B_weights_update = mom .* B_weights_update .+ ( learning_rate .* ( tmp_X' * delta_hidden ) ) ./ ( fudge_factor .+ sqrt( historical_B ) ) ;

      historical_B_hid_bias = historical_B_hid_bias .+ delta_hidden.^2 ;
      B_weights_hid_bias_update = mom .* B_weights_hid_bias_update .+ ( learning_rate .* delta_hidden ) ./ ( fudge_factor .+ sqrt( historical_B_hid_bias ) ) ;

      % update the weight matrices with weight_updates
      A_weights = A_weights + A_weights_update ;
      A_weights_hid_bias = A_weights_hid_bias + A_weights_hid_bias_update ;
      B_weights = B_weights + B_weights_update ;
      B_weights_hid_bias = B_weights_hid_bias + B_weights_hid_bias_update ;
      w_weights = w_weights + w_weights_update ;
      w_weights_vis_bias = w_weights_vis_bias + w_weights_vis_bias_update ;

      end % end of training_example loop

  % feedforward with this epoch's updated weights
  epoch_trained_tmp_X_through_sigmoid = 1.0 ./ ( 1.0 .+ exp( -( dAuto_Encode_training_data * B_weights .+ repmat( B_weights_hid_bias , size( dAuto_Encode_training_data , 1 ) , 1 ) ) ) ) ;
  epoch_trained_output = ( dAuto_Encode_training_data * A_weights .+ repmat( A_weights_hid_bias , size( dAuto_Encode_training_data , 1 ) , 1 ) )...
                          .+ ( epoch_trained_tmp_X_through_sigmoid * w_weights' .+ repmat( w_weights_vis_bias , size( epoch_trained_tmp_X_through_sigmoid , 1 ) , 1 ) ) ;

  % get sum squared error cost
  cost( iter , 1 ) = sum( sum( ( dAuto_Encode_targets .- epoch_trained_output ) .^ 2 ) ) ;

    % record best so far
    if cost( iter , 1 ) <= lowest_cost
       lowest_cost = cost( iter , 1 ) ;
       iter_min = iter ;
       best_A = A_weights ;
       best_B = B_weights ;
       best_w = w_weights ;
    end

  end % end of backpropagation epoch loop

% plot weights
figure(5) ; surf( best_A ) ; title( 'Best A Weights' ) ;
figure(6) ; surf( best_B ) ; title( 'Best B Weights' ) ;
figure(7) ; surf( best_w ) ; title( 'Best w Weights' ) ;
figure(8) ; plot( A_weights_hid_bias , 'b' , B_weights_hid_bias , 'r' , w_weights_vis_bias , 'g' ) ; title( 'Biases after Autoencoder training' ) ; legend( 'A' , 'B' , 'w' ) ;
figure(9) ; plot( cost ) ; title( 'Evolution of Autoencoder cost' ) ;

% END OF CRBM WEIGHT PRE-TRAINING %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

The changes from the previous code update are a slightly different way to handle the bias units, the introduction of hidden and visible bias units from Restricted Boltzmann machine (RBM) pre-training and the introduction of an automated way to select the "order" of the Conditional Restricted Boltzmann machine (CRBM).

The order of a CRBM is how many time steps we look back in order to model the autoregressive components. This could be decided heuristically or through cross validation but I have decided to use the Octave "arburg" function to "auto-magically" select this look back length, the idea being that the data itself informs this decision and makes the whole CRBM training algorithm adaptive to current conditions. Since the ultimate point of the CRBM will be to make predictions of future OHLC values I have chosen to use the final prediction error model selection criteria for the arburg function.

Now that the bulk of this coding has been completed I think it would be useful to describe the proposed work flow of the various components.

• the data and its derived inputs, such as indicators etc, are input to a Gaussian RBM as a weight initialisation step for the denoising autoencoder training. A Gaussian RBM is used because the data are real valued and not binary. This step is typical of what happens in deep learning and helps to extract meaningful features from the raw data in an unsupervised manner
• the data and RBM initialised weights are then input to the denoising autoencoder to further model the weights and to take into account the autoregressive components of the data
• these twice modelled weights are then used as the initial weights for the CRBM training of a Gaussian-Binary CRBM layer
• the hidden layer of the above Gaussian-Binary CRBM is then used as data for a second Binary-Binary CRBM layer which will be stacked. The training for this second layer will follow the format above, i.e. RBM and denoising autoencoder pre-training of weights

The next step will be for me to compile the denoising autoencoder code into an Octave C++ .oct function for speed optimisation purposes.

Refactored Denoising Autoencoder Code Update

This code box contains updated code from my previous post. The main change is the inclusion of bias units for the directed auto-regressive weights and the visible to hidden weights. In addition there is code showing how data is pre-processed into batches/targets for the pre-training and code showing how the weight matrices are manipulated into a form suitable for my existing optimised crbm code for gaussian units.

%  select rolling window length to use - an optimisable parameter via pso?
rolling_window_length = 50 ;

%  how-many timesteps do we look back for directed connections - this is what we call the "order" of the model
n1 = 3 ; % first "gaussian" layer order
n2 = 3 ; % second "binary" layer order
batchsize = 5 ;

%  taking into account rolling_window_length, n1, n2 and batchsize, get total lookback length
remainder = rem( ( rolling_window_length + n1 + n2 ) , batchsize ) ;

if ( remainder > 0 ) % number of training examples with lookback and orders n1 and n2 not exactly divisable by batchsize
lookback_length = ( rolling_window_length + n1 + n2 + ( batchsize - remainder ) ) ; % increase the lookback_length
else                 % number of training examples with lookback and orders n1 and n2 exactly divisable by batchsize
lookback_length = ( rolling_window_length + n1 + n2 ) ;
end

%  create batchdataindex using lookback_length to index bars in the features matrix
batchdataindex = ( ( training_point_index - ( lookback_length - 1 ) ) : 1 : training_point_index )' ;
batchdata = features( batchdataindex , : ) ;

%  z-normalise the batchdata matrix with the mean and std of columns
data_mean = mean( batchdata , 1 ) ;
data_std = std( batchdata , 1 ) ;
batchdata = ( batchdata .- repmat( data_mean , size( batchdata , 1 ) , 1 ) ) ./ repmat( data_std , size( batchdata , 1 ) , 1 ) ; % batchdata is now z-normalised by data_mean & data_std
% add bias neurons
batchdata = [ ones( size( batchdata , 1 ) , 1 ) batchdata ] ;

%  create the minibatch index matrix for gaussian rbm pre-training of directed weights w
minibatch = ( 1 : 1 : size( batchdata , 1 ) ) ; minibatch( 1 : ( size( batchdata , 1 ) - rolling_window_length ) ) = [] ;
minibatch = minibatch( randperm( size( minibatch , 2 ) ) ) ; minibatch = reshape( minibatch , batchsize , size( minibatch , 2 ) / batchsize ) ;

% PRE-TRAINING FOR THE VISABLE TO HIDDEN AND THE VISIBLE TO VISIBLE WEIGHTS %%%%
% First create a training set and target set for the pre-training
dAuto_Encode_targets = batchdata( : , 2 : end ) ; dAuto_Encode_training_data = [] ;

  % loop to create the dAuto_Encode_training_data ( n1 == "order" of the gaussian layer of crbm )
  for ii = 1 : n1
  dAuto_Encode_training_data = [ dAuto_Encode_training_data shift( batchdata , ii ) ] ;
  end

% now delete the first n1 rows due to circular shift induced mismatch of data and targets
dAuto_Encode_targets( 1 : n1 , : ) = [] ; dAuto_Encode_training_data( 1 : n1 , : ) = [] ;
% add bias
%dAuto_Encode_training_data = [ ones( size( dAuto_Encode_training_data , 1 ) , 1 ) dAuto_Encode_training_data ] ;
% bias units idx
bias_idx = ( 1 : size( batchdata , 2 ) : size( dAuto_Encode_training_data , 2 ) ) ;

% DO RBM PRE-TRAINING FOR THE BOTTOM UP DIRECTED WEIGHTS W %%%%%%%%%%%%%%%%%%%%%
% use rbm trained initial weights instead of using random initialisation for weights
% Doing this because we are not using regularisation in the autoencoder pre-training
epochs = 10000 ;
hidden_layer_size = 2 * size( dAuto_Encode_targets , 2 ) ;
w_weights = gaussian_rbm( dAuto_Encode_targets , minibatch , epochs , hidden_layer_size ) ;
% keep a copy of these original w_weights
w1 = w_weights ;
A_weights = gaussian_rbm( dAuto_Encode_training_data , minibatch , epochs , size( dAuto_Encode_targets , 2 ) ) ;
B_weights = gaussian_rbm( dAuto_Encode_training_data , minibatch , epochs , hidden_layer_size ) ;

% create weight update matrices
A_weights_update = zeros( size( A_weights ) ) ;
B_weights_update = zeros( size( B_weights ) ) ;
w_weights_update = zeros( size( w_weights ) ) ;

% for adagrad
historical_A = zeros( size( A_weights ) ) ;
historical_B = zeros( size( B_weights ) ) ;
historical_w = zeros( size( w_weights ) ) ;

% set some training parameters
n = size( dAuto_Encode_training_data , 1 ) ; % number of training examples in dAuto_Encode_training_data
input_layer_size = size( dAuto_Encode_training_data , 2 ) ;
fudge_factor = 1e-6 ; % for numerical stability for adagrad
learning_rate = 0.1 ; % will be changed to 0.01 after 50 iters through epoch loop
mom = 0 ;             % will be changed to 0.9 after 50 iters through epoch loop
noise = 0.5 ;
epochs = 1000 ;
cost = zeros( epochs , 1 ) ;
lowest_cost = inf ;

  % Stochastic Gradient Descent training over dAuto_Encode_training_data
  for iter = 1 : epochs

      % change momentum and learning_rate after 50 iters
      if iter == 50
      mom = 0.9 ;
      learning_rate = 0.01 ;
      end

      index = randperm( n ) ; % randomise the order of training examples

      for training_example = 1 : n

      % Select data for this training batch
      tmp_X = dAuto_Encode_training_data( index( training_example ) , : ) ;
      tmp_T = dAuto_Encode_targets( index( training_example ) , : ) ;

      % Randomly black out some of the input training data
      tmp_X( rand( size( tmp_X ) ) < noise ) = 0 ;
      % but keep bias units
      tmp_X( bias_idx ) = 1 ;

      % feedforward tmp_X through B_weights and get sigmoid e.g ret = 1.0 ./ ( 1.0 + exp(-input) )
      tmp_X_through_sigmoid = 1.0 ./ ( 1.0 .+ exp( - B_weights * tmp_X' ) ) ;

      % Randomly black out some of tmp_X_through_sigmoid for dropout training
      tmp_X_through_sigmoid( rand( size( tmp_X_through_sigmoid ) ) < noise ) = 0 ;

      % feedforward tmp_X through A_weights and add to tmp_X_through_sigmoid * w_weights for linear output layer
      final_output_layer = ( tmp_X * A_weights' ) .+ ( tmp_X_through_sigmoid' * w_weights ) ;

      % now do backpropagation
      % this is the derivative of weights for the linear final_output_layer
      delta_out = ( tmp_T - final_output_layer ) ;

      % NOTE! gradient of sigmoid function g = sigmoid(z) .* ( 1.0 .- sigmoid(z) )
      sig_grad = tmp_X_through_sigmoid .* ( 1 .- tmp_X_through_sigmoid ) ;

      % backpropagation only through the w_weights that are connected to tmp_X_through_sigmoid
      delta_hidden = ( w_weights * delta_out' ) .* sig_grad ;

      % apply deltas from backpropagation with adagrad for the weight updates
      historical_A = historical_A .+ ( delta_out' * tmp_X ).^2 ;
      A_weights_update = mom .* A_weights_update .+ ( learning_rate .* ( delta_out' * tmp_X ) ) ./ ( fudge_factor .+ sqrt( historical_A ) ) ;

      historical_w = historical_w .+ ( tmp_X_through_sigmoid * delta_out ).^2 ;
      w_weights_update = mom .* w_weights_update .+ ( learning_rate .* ( tmp_X_through_sigmoid * delta_out ) ) ./ ( fudge_factor .+ sqrt( historical_w ) ) ;

      historical_B = historical_B .+ ( delta_hidden * tmp_X ).^2 ;
      B_weights_update = mom .* B_weights_update .+ ( learning_rate .* ( delta_hidden * tmp_X ) ) ./ ( fudge_factor .+ sqrt( historical_B ) ) ;

      % update the weight matrices with weight_updates
      A_weights = A_weights + A_weights_update ;
      B_weights = B_weights + B_weights_update ;
      w_weights = w_weights + w_weights_update ;

      end % end of training_example loop

  % feedforward with this epoch's updated weights
  epoch_trained_tmp_X_through_sigmoid = ( 1.0 ./ ( 1.0 .+ exp( -( ( B_weights ) * dAuto_Encode_training_data' ) ) ) ) ;
  epoch_trained_output = ( dAuto_Encode_training_data * ( A_weights )' ) .+ ( epoch_trained_tmp_X_through_sigmoid' * ( w_weights ) ) ;

  % get sum squared error cost
  cost( iter , 1 ) = sum( sum( ( dAuto_Encode_targets .- epoch_trained_output ) .^ 2 ) ) ;

    % record best so far
    if cost( iter , 1 ) <= lowest_cost
       lowest_cost = cost( iter , 1 ) ;
       iter_min = iter ;
       best_A = A_weights ;
       best_B = B_weights ;
       best_w = w_weights ;
    end

  end % end of backpropagation loop

lowest_cost                                        % print final cost to terminal
iter_min ;                                           % and the iter it occured on
graphics_toolkit( "qt" ) ;
figure(1) ; plot( cost , 'r' , 'linewidth' , 3 ) ; % and plot the cost curve

% plot weights
graphics_toolkit( "gnuplot" ) ;
figure(2) ; surf( best_A ) ; title( 'Best A Weights' ) ;
figure(3) ; surf( best_B ) ; title( 'Best B Weights' ) ;
figure(4) ; surf( best_w ) ; title( 'Best w Weights' ) ;

% END OF CRBM WEIGHT PRE-TRAINING %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

% extract bias weights from best_A and best_B
A_bias = best_A( : , bias_idx ) ; best_A( : , bias_idx ) = [] ; A_bias = sum( A_bias , 2 ) ;
B_bias = best_B( : , bias_idx ) ; best_B( : , bias_idx ) = [] ; B_bias = sum( B_bias , 2 ) ;

% now delete bias units from batchdata
batchdata( : , 1 ) = [] ;

% create reshaped structures to hold A_weights and B_weights
A1 = reshape( best_A , size( best_A , 1 ) , size( best_A , 2 ) / n1 , n1 ) ;
B1 = reshape( best_B , size( best_B , 1 ) , size( best_B , 2 ) / n1 , n1 ) ;

The following video shows the evolution of the weights whilst training over 20 consecutive price bars. The top three panes are the weights after the denoising autoencoder training and the bottom three are the same weights after being used as initialisation weights for the CRBM training and then being modified by this CRBM training. It is this final set of weights that would typically be used for CRBM generation.

non-embedded view

Refactored Denoising Autoencoder Code

It has been quite a challenge but I now have a working first attempt at Octave code for autoencoder pre-training of weights for a Conditional Restricted Boltzmann Machine, which is shown in the code box below.

% PRE-TRAINING FOR THE VISABLE TO HIDDEN AND THE VISIBLE TO VISIBLE WEIGHTS %%%%
% First create a training set and target set for the pre-training
dAuto_Encode_targets = batchdata ; dAuto_Encode_training_data = [] ;

  % loop to create the dAuto_Encode_training_data ( n1 == "order" of the gaussian layer of crbm )
  for ii = 1 : n1
  dAuto_Encode_training_data = [ dAuto_Encode_training_data shift( batchdata , ii ) ] ;
  end

% now delete the first n1 rows due to circular shift induced mismatch of data and targets
dAuto_Encode_targets( 1 : n1 , : ) = [] ; dAuto_Encode_training_data( 1 : n1 , : ) = [] ;

% DO RBM PRE-TRAINING FOR THE BOTTOM UP DIRECTED WEIGHTS W %%%%%%%%%%%%%%%%%%%%%
% use rbm trained initial weights instead of using random initialisation for weights
% Doing this because we are not using regularisation in the autoencoder pre-training
epochs = 5000 ;
hidden_layer_size = 2 * size( dAuto_Encode_targets , 2 ) ;
w_weights = gaussian_rbm( dAuto_Encode_targets , minibatch , epochs , hidden_layer_size ) ;
A_weights = gaussian_rbm( dAuto_Encode_training_data , minibatch , epochs , size( dAuto_Encode_targets , 2 ) ) ;
B_weights = gaussian_rbm( dAuto_Encode_training_data , minibatch , epochs , hidden_layer_size ) ;

% create weight update matrices
A_weights_update = zeros( size( A_weights ) ) ;
B_weights_update = zeros( size( B_weights ) ) ;
w_weights_update = zeros( size( w_weights ) ) ;

% for adagrad
historical_A = zeros( size( A_weights ) ) ;
historical_B = zeros( size( B_weights ) ) ;
historical_w = zeros( size( w_weights ) ) ;

% set some training parameters
n = size( dAuto_Encode_training_data , 1 ) ; % number of training examples in dAuto_Encode_training_data
input_layer_size = size( dAuto_Encode_training_data , 2 ) ;
fudge_factor = 1e-6 ; % for numerical stability for adagrad
learning_rate = 0.1 ; % will be changed to 0.01 after 50 iters through epoch loop
mom = 0 ;             % will be changed to 0.9 after 50 iters through epoch loop
noise = 0.5 ;
epochs = 1000 ;
cost = zeros( epochs , 1 ) ;
lowest_cost = inf ;

  % Stochastic Gradient Descent training over dAuto_Encode_training_data
  for iter = 1 : epochs

      % change momentum and learning_rate after 50 iters
      if iter == 50
      mom = 0.9 ;
      learning_rate = 0.01 ;
      end

      index = randperm( n ) ; % randomise the order of training examples

      for training_example = 1 : n

      % Select data for this training batch
      tmp_X = dAuto_Encode_training_data( index( training_example ) , : ) ;
      tmp_T = dAuto_Encode_targets( index( training_example ) , : ) ;

      % Randomly black out some of the input training data
      tmp_X( rand( size( tmp_X ) ) < noise ) = 0 ;

      % feedforward tmp_X through B_weights and get sigmoid e.g ret = 1.0 ./ ( 1.0 + exp(-input) )
      tmp_X_through_sigmoid = 1.0 ./ ( 1.0 .+ exp( - B_weights * tmp_X' ) ) ;

      % Randomly black out some of tmp_X_through_sigmoid for dropout training
      tmp_X_through_sigmoid( rand( size( tmp_X_through_sigmoid ) ) < noise ) = 0 ;

      % feedforward tmp_X through A_weights and add to tmp_X_through_sigmoid * w_weights for linear output layer
      final_output_layer = ( tmp_X * A_weights' ) .+ ( tmp_X_through_sigmoid' * w_weights ) ;

      % now do backpropagation
      % this is the derivative of weights for the linear final_output_layer
      delta_out = ( tmp_T - final_output_layer ) ;

      % NOTE! gradient of sigmoid function g = sigmoid(z) .* ( 1.0 .- sigmoid(z) )
      sig_grad = tmp_X_through_sigmoid .* ( 1 .- tmp_X_through_sigmoid ) ;

      % backpropagation only through the w_weights that are connected to tmp_X_through_sigmoid
      delta_hidden = ( w_weights * delta_out' ) .* sig_grad ;

      % apply deltas from backpropagation with adagrad for the weight updates
      historical_A = historical_A .+ ( delta_out' * tmp_X ).^2 ;
      A_weights_update = mom .* A_weights_update .+ ( learning_rate .* ( delta_out' * tmp_X ) ) ./ ( fudge_factor .+ sqrt( historical_A ) ) ;

      historical_w = historical_w .+ ( tmp_X_through_sigmoid * delta_out ).^2 ;
      w_weights_update = mom .* w_weights_update .+ ( learning_rate .* ( tmp_X_through_sigmoid * delta_out ) ) ./ ( fudge_factor .+ sqrt( historical_w ) ) ;

      historical_B = historical_B .+ ( delta_hidden * tmp_X ).^2 ;
      B_weights_update = mom .* B_weights_update .+ ( learning_rate .* ( delta_hidden * tmp_X ) ) ./ ( fudge_factor .+ sqrt( historical_B ) ) ;

      % update the weight matrices with weight_updates
      A_weights = A_weights + A_weights_update ;
      B_weights = B_weights + B_weights_update ;
      w_weights = w_weights + w_weights_update ;

      end % end of training_example loop

  % feedforward with this epoch's updated weights
  epoch_trained_tmp_X_through_sigmoid = ( 1.0 ./ ( 1.0 .+ exp( -( ( B_weights./2 ) * dAuto_Encode_training_data' ) ) ) ) ;
  epoch_trained_output = ( dAuto_Encode_training_data * ( A_weights./2 )' ) .+ ( epoch_trained_tmp_X_through_sigmoid' * ( w_weights./2 ) ) ;

  % get sum squared error cost
  cost( iter , 1 ) = sum( sum( ( dAuto_Encode_targets .- epoch_trained_output ) .^ 2 ) ) ;

    % record best so far
    if cost( iter , 1 ) <= lowest_cost
       lowest_cost = cost( iter , 1 ) ;
       best_A = A_weights ./ 2 ;
       best_B = B_weights ./ 2 ;
       best_w = w_weights ./ 2;
    end

  end % end of backpropagation loop

lowest_cost                                        % print final cost to terminal
graphics_toolkit( "qt" ) ;
figure(1) ; plot( cost , 'r' , 'linewidth' , 3 ) ; % and plot the cost curve

% plot weights
graphics_toolkit( "gnuplot" ) ;
figure(2) ; surf( best_A ) ; title( 'Best A Weights' ) ;
figure(3) ; surf( best_B ) ; title( 'Best B Weights' ) ;
figure(4) ; surf( best_w ) ; title( 'Best w Weights' ) ;

% END OF CRBM WEIGHT PRE-TRAINING %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

Prior to this code being run there is a bit of data pre-processing to create data batches and their indexes, and of course afterwards the generated weights will be used as initial starting weights for the CRBM training.

I will not discuss the code very much in this post as it will probably be heavily revised in the near future. However, I will point out a few things about it, namely

• I have used Restricted Boltzmann machine pre-training as initial weights for the autoencoder training
• I have applied dropout to the single hidden layer in the autoencoder
• early stopping, Momentum and AdaGrad are employed
• bias units are not included
• the code plots some charts for visual inspection (see below), which probably will not be present in the code's final version

My reason for using RBM pre-training instead of random initialisation of weights is simple - RBM training generally seems to result in a lower average cost when the trained autoencoder itself is applied to the training data.

Below is a short video of a desktop slide show which shows typical, final, pre-trained weights from a sequence of 20 training sessions. The first 10 slides are random initialisation and the last 10 are initialisation with RBM training. Note the smoother cost curve for the RBM initialisation. Apart from this initialisation all other training parameters were exactly the same for all training sessions.

Non embedded view
The lower pane shows the evolution of cost on the Y axis vs. epoch on the X axis. The upper three panes show the weights on what are called the A, B and w weights respectively. A are the direct auto-regressive weights from training data to target data without any intervening hidden layers, B are the weights to the hidden sigmoid layer and w are the weights from the hidden layer to the targets. It is interesting to see how the A weights remain relatively consistent over the different sessions.
